PlayStation 3 Guitar Hero Drums

Platform
Controller
  • Guitar Hero World Tour Drums require their respective drum dongles to connect to your computer. Guitar Hero World Tour Drums have the controller module at the top.
    PlayStation 3 Rock Band Drums Dongle Model:95481.806
  • Guitar Hero 5/Band Hero Drums require their respective drum dongles to connect to your computer. Guitar Hero 5/Band Hero Drums have the controller module at the bottom.
    PlayStation 3 The Beatles: Rock Band Drums Dongle Model:PRT-0002808
    Please note that GH World Tour and GH5/Band Hero dongles are not interchangable or compatible.
  • Velocity sensitivity doesn’t seem to work.
  • Gem colors do not match the pads.

How do I map my drums? Click on the Pads icon at the top of RPCS3.

The Pads menu in RPCS3.

It’s suggested to create a new configuration by clicking Add Configuration at the top right of the Pads window.
This is so you can change configuration profiles in case you want to play other games.

The top right of RPCS3's Pads window. 'Add Configuration' is being clicked on by the mouse cursor

Follow the instructions and/or match the assignments below.

The instrument page being used as a as a mapping reference for RPCS3.

Pad Information

Section titled “Pad Information”
Handlers Devices
MMJoystick Joystick
Device Class Device Subtype
Drums Guitar Hero

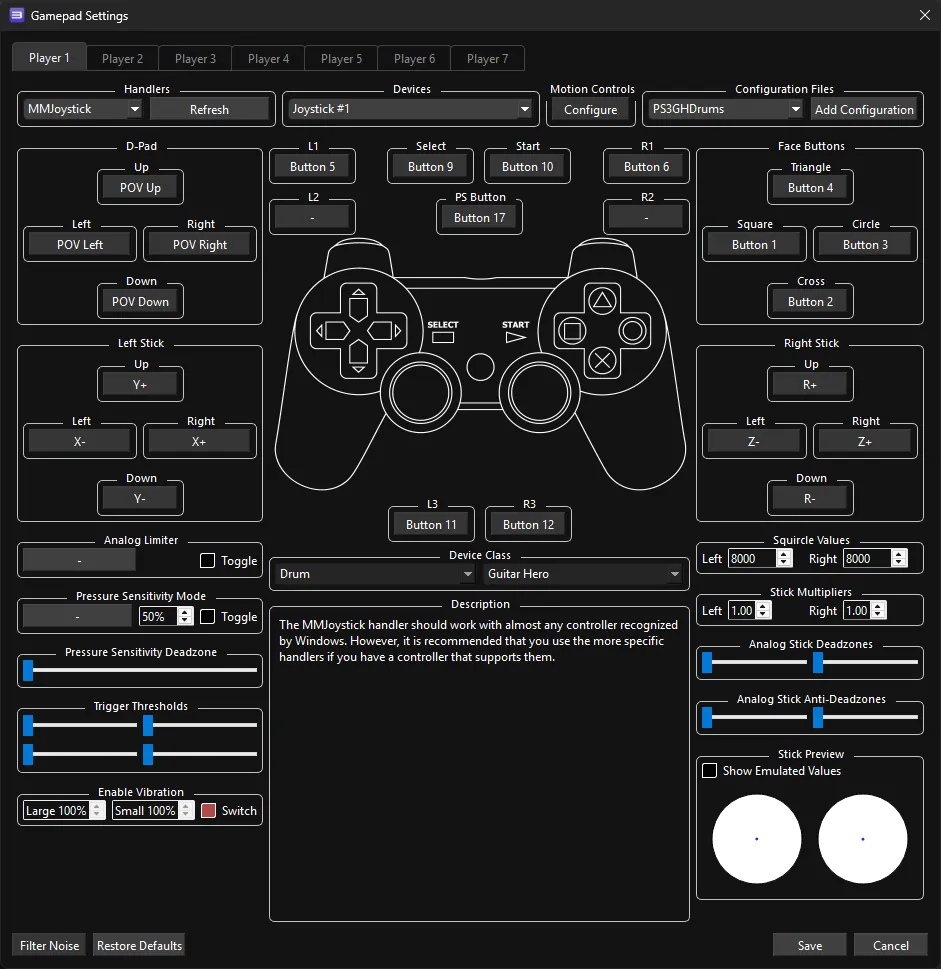

Mapping

Section titled “Mapping”
  • Guitar Hero controllers tend to misbehave and refuse to map sometimes. If you try mapping a button and always get U+ or something similar, click Filter Noise at the bottom left of the controller configuration window then try mapping.
RPCS3 Guitar Hero Drums
Cross Green Pad
Circle Red Pad
Square Blue Pad
Triangle Yellow Cymbal
R1 Orange Cymbal
L1 Foot Pedal
Cross Cross Button
Circle Circle Button
Square Square Button
Triangle Triangle Button
D-Pad D-Pad
Left Stick Left Stick
Start Start Button
Select Select Button
PS Button Home Button
Mapping

Profile

Section titled “Profile”

[Download Profile]

How do I use profiles?

After downloading the profile,

  1. Extract the .7z file.
  2. Drag the input_configs folder into the configs folder where you have RPCS3 in.
Installing a configuration profile from the Instrument Repo
  1. After that, you can select the profile in the Pads menu.
RPCS3's Gamepad Settings, showing the cursor over a profile.

Most of the time, these controller profiles should work out of the box. If they don’t, try changing the controller listed in Devices, next to the Refresh button until it receives an input. You can edit this while the game is running.

[Back to Controllers]

Mapped by [GamerPerson22]
