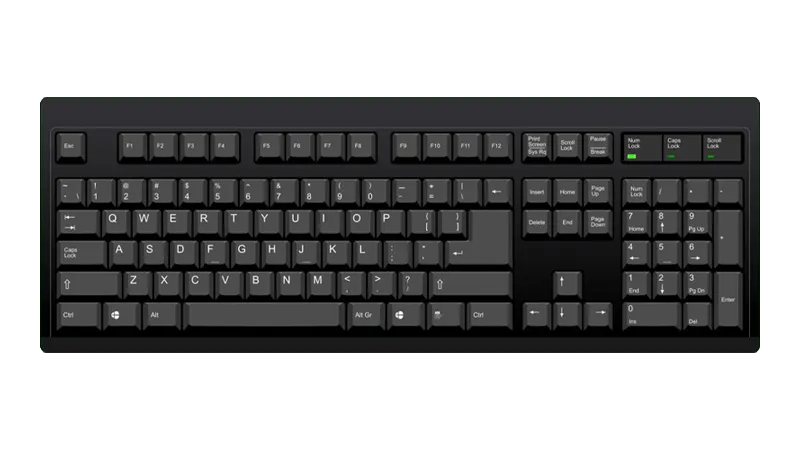

PC Keyboard

• To bind multiple keys to one button, hold Shift then click on the button you want to assign multiple keys to.
• You will need to set the “Stick Multiplier” and “Stick Interpolation” for Left and Right to 0.90 for whammy to function correctly.
• To play Guitar/Bass/Keys/Drums parts on a Controller (Padtar), you will need Rock Band 3 Deluxe.
  • You can also rebind your controller within Deluxe.
    Menu > Options > Deluxe Settings > Advanced > Controller > Pad Button Remap

How do I map my keyboard?

Click on the Pads icon at the top of RPCS3.

It’s suggested to create a new configuration by clicking Add Configuration at the top right of the Pads window.
This is so you can change configuration profiles in case you want to play other games.

Follow the instructions and/or match the assignments below.

Default

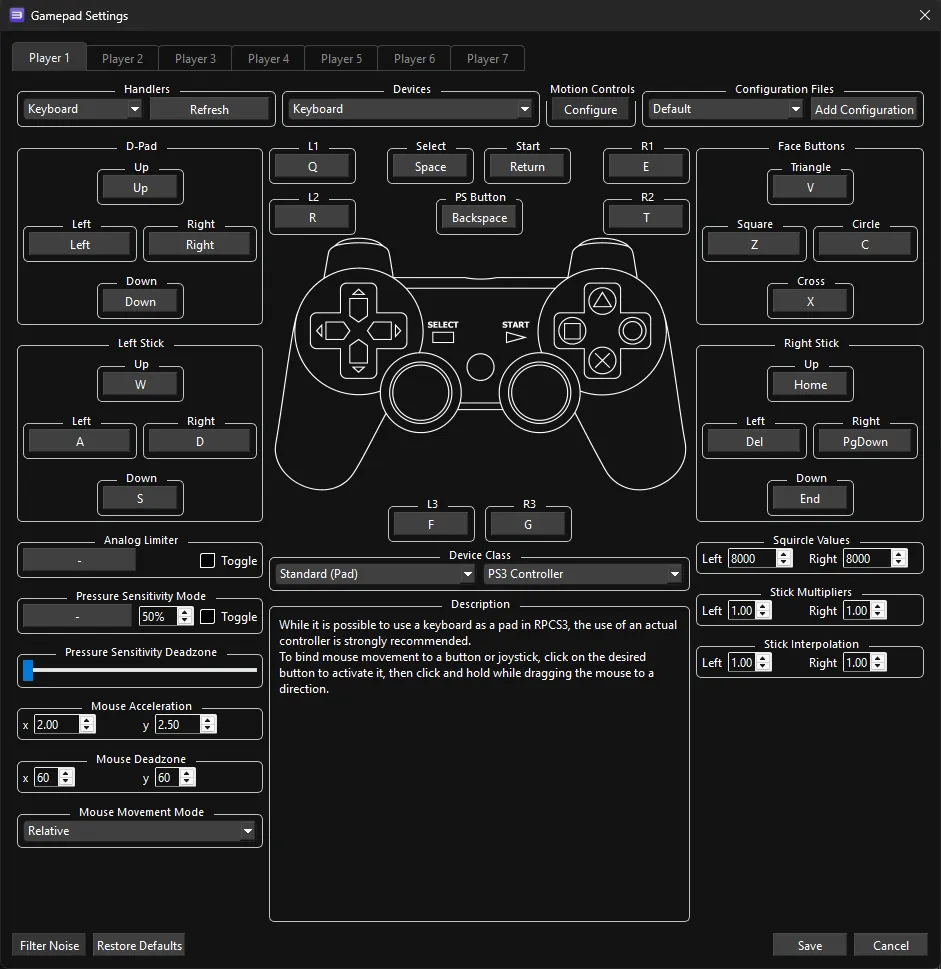

Default Mapping

These are the default keyboard mappings that come with RPCS3.

• This profile is strictly for menus and for vocalists that lack a proper controller.

Pad Information

Handlers	Devices
Keyboard	Keyboard

Device Class	Device Subtype
Standard (Pad)	PS3 Controller

RPCS3	Keyboard	Alt Use 1	Alt Use 2
Cross	X	Select
Circle	C	Back	Mic 3 Volume (Song)
Square	Z	Mic 1 Volume (Song)
Triangle	V	View More Info (Library)	Mic 2 Volume (Song)
D-Pad	Up, Down, Left, and Right	Navigation
Left Stick	W, A, S, and D	Navigation
Start	Return	Options	Pause (Song)
Select	Space	Overdrive
L1	Q	Guide Part Selection (Practice)
L2	R	Vocal Part Selection (Practice)
R1	E	Vocal Track Volume (Song)
R2	T	Pitch Correction (Song)

Autostrum/FNFest

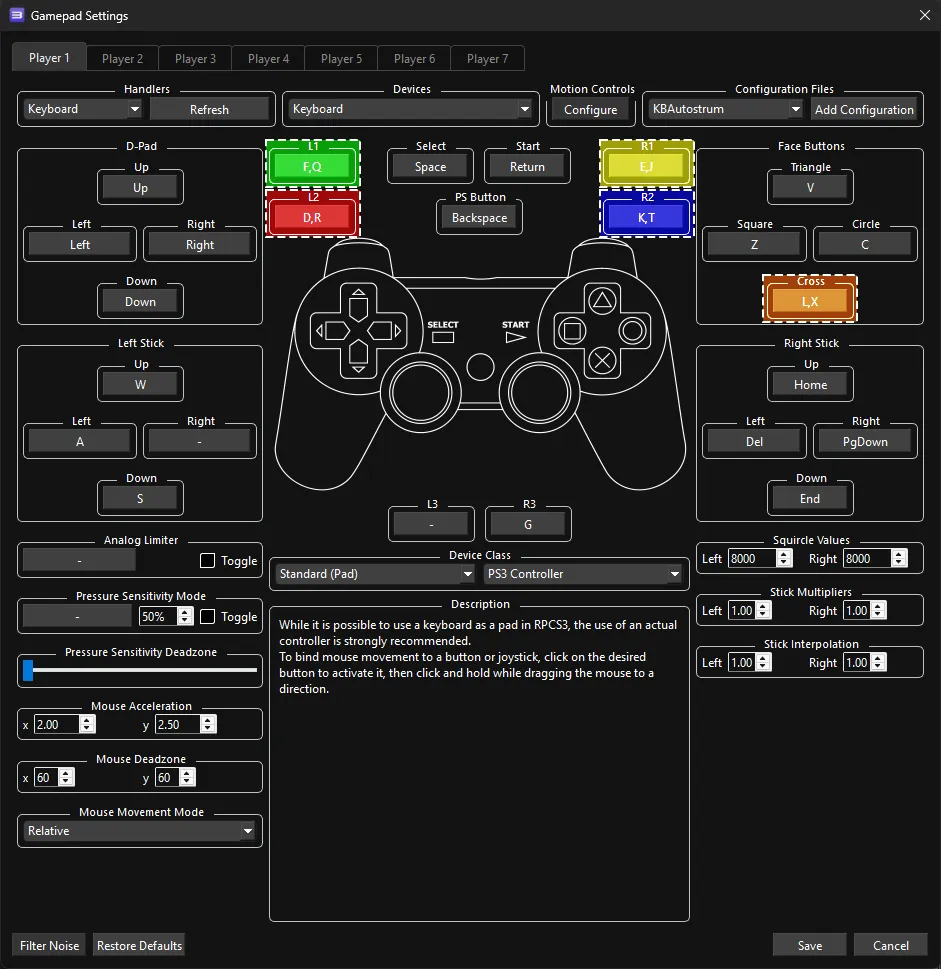

Autostrum

A profile heavily inspired by Fortnite Festival’s keyboard scheme. Modified by lunalawl.

• This profile does not require strumming.
• To bind multiple keys to one button, hold Shift then click on the button you want to assign multiple keys to.

Pad Information

Handlers	Devices
Keyboard	Keyboard

Device Class	Device Subtype
Standard (Pad)	PS3 Controller

RPCS3	Keyboard	Guitars/Bass/Keys	Alt Use 1	Alt Use 2
L1	D, and R		Guide Part Selection (Practice)
L2	F, and Q		Vocal Part Selection (Practice)
R1	E, and J		Vocal Track Volume (Song)
R2	K, and T		Pitch Correction (Song)
Cross	L, and X		Select
Circle	C		Back	Mic 3 Volume (Song)
Square	Z		Mic 1 Volume (Song)
Triangle	V		View More Info (Library)	Mic 2 Volume (Song)
Left Stick: Up	W, and Left Shift		Navigation
Left Stick: Left	A		Navigation
Left Stick: Down	S		Navigation
Left Stick: Right	D		Navigation
D-Pad: Up	Up	Navigation
Start	Return		Options	Pause (Song)
Select	Space	Overdrive		Pause (Song)

Manual Strum

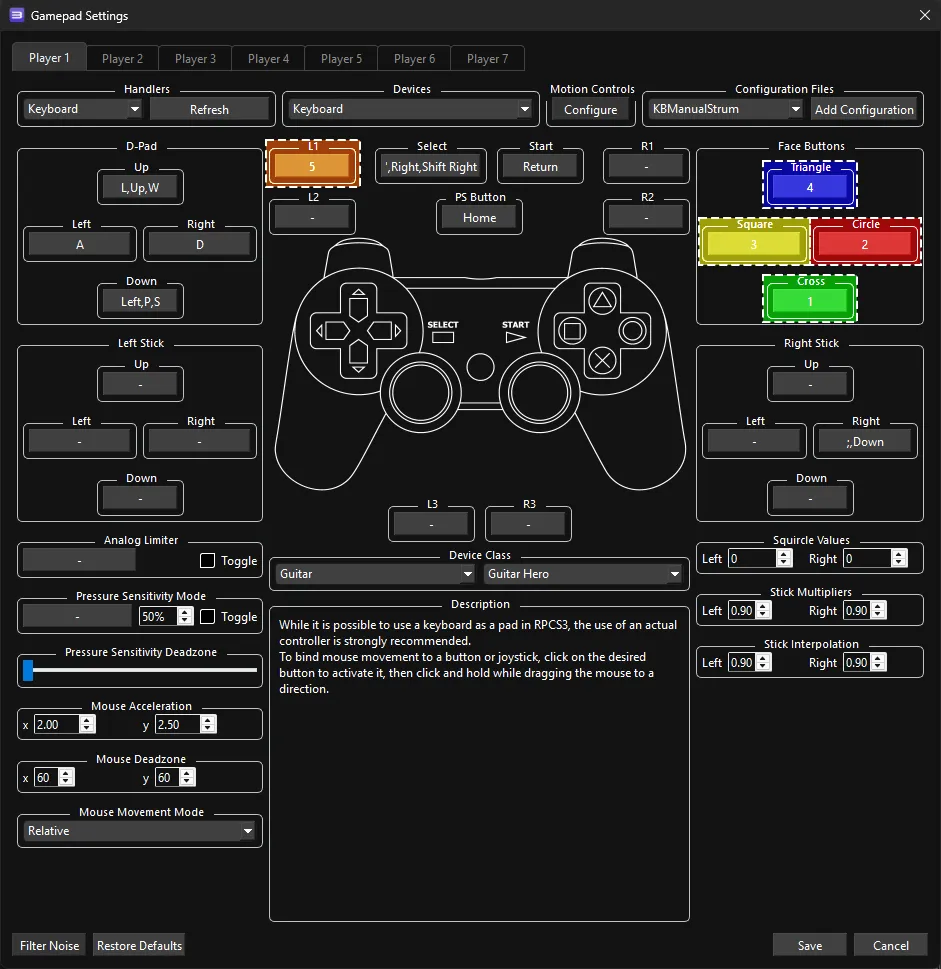

Manual Strum Guitars/Bass/Keys

A profile inspired by both Fortnite Festival’s Pro bindings and Frets on Fire. Modified by Doom05 to work a bit better with Rock Band 3.

• This profile requires strumming. While holding a fret, press the strum buttons.
• To bind multiple keys to one button, hold Shift then click on the button you want to assign multiple keys to.

Pad Information

Handlers	Devices
Keyboard	Keyboard

Device Class	Device Subtype
Guitar	Guitar Hero

RPCS3	Keyboard	Guitars/Bass/Keys
Cross	1
Circle	2
Square	3
Triangle	4
L1	5
D-Pad: Up	L, and Up Arrow
D-Pad: Down	P, and Left Arrow
D-Pad: Up	W	Navigation
D-Pad: Left	A	Navigation
D-Pad: Down	S	Navigation
D-Pad: Right	D	Navigation
Right Stick: Right	;, and Down Arrow
Select	', and Right Arrow	Overdrive

Linos Binds

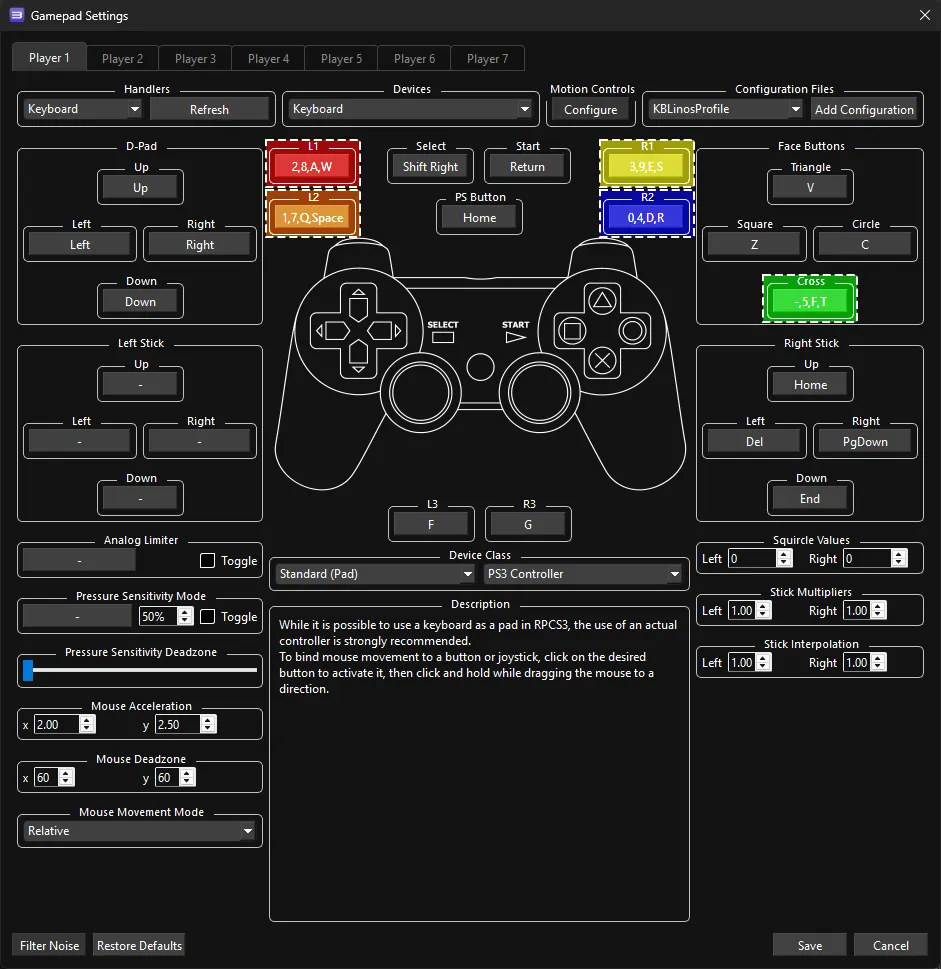

Linos’ Profile

A profile used by MiloHax’s favorite keyboard player. Has plenty of alt-keys for acceptable drumming as well as guitar playing.

• This profile does not require strumming.
• To bind multiple keys to one button, hold Shift then click on the button you want to assign multiple keys to.

Pad Information

Handlers	Devices
Keyboard	Keyboard

Device Class	Device Subtype
Standard (Pad)	PS3 Controller

RPCS3	Keyboard	Guitars/Bass/Keys	Drums	Alt Use 1	Alt Use 2
L1	2, 8, A, and W			Guide Part Selection (Practice)
L2	1, 7, Q, and SPACE			Vocal Part Selection (Practice)
R1	3, 9, E, and S			Vocal Track Volume (Song)
R2	0, 4, D, and R			Pitch Correction (Song)
Cross	-, 5, F, and T			Select
Circle	C			Back	Mic 3 Volume (Song)
Square	Z			Mic 1 Volume (Song)
Triangle	V			View More Info (Library)	Mic 2 Volume (Song)
D-Pad: Up	Up			Navigation
D-Pad: Left	Left			Navigation
D-Pad: Down	Down			Navigation
D-Pad: Right	Right			Navigation
Select	Shift Right	Overdrive	Overdrive	Filters (Library)

PRO Drums

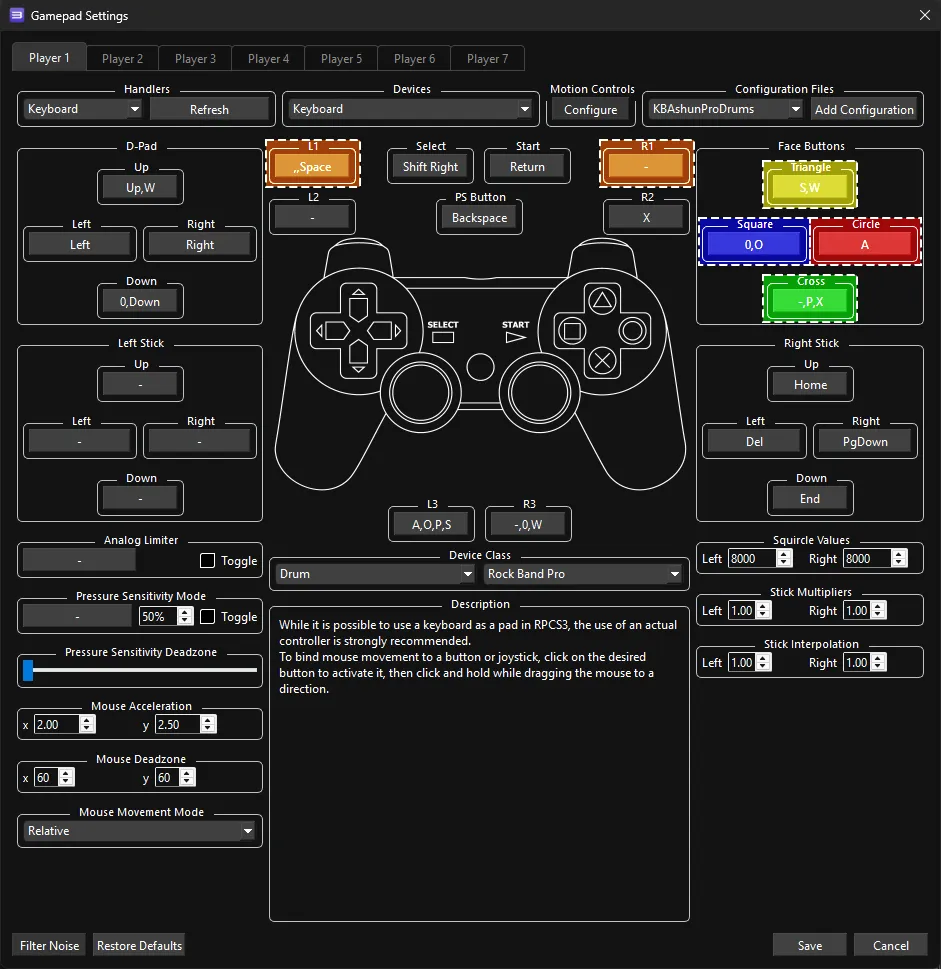

Ashun Pro Drums

A profile used by our favorite Colombian key-drummer, Ashun. Scientists are still questioning how anyone could use this profile.

• To bind multiple keys to one button, hold Shift then click on the button you want to assign multiple keys to.
• If you don’t bind all modifiers, you will have dropped notes.

Pad Information

Handlers	Devices
Keyboard	Keyboard

Device Class	Device Subtype
Drum	Rock Band Pro

RPCS3	Keyboard	Drums
Circle	A
Triangle	S
Square	O
Cross	P
Triangle	W
Square	0
Cross	-
L1	, and Space
R1	C
L3	A, O, P, and S	Pad Modifier
R3	W, 0, and -	Cymbal Modifier
D-Pad: Up	W	Yellow Cymbal Modifier
D-Pad: Down	0	Blue Cymbal Modifier

Profiles

[Download Profiles]

How do I use profiles?

Caution

This is not recommended if you’re using multiple controllers at once.

After downloading the profile,

1. Extract the .7z file.

2. Drag the input_configs folder into the configs folder where you have RPCS3 in.



3. After that, you can select the profile in the “Pads” menu.



Most of the time, these controller profiles should work out of the box. If they don’t, try changing the controller listed in Devices, next to the Refresh button until it receives an input. You can edit this while the game is running.

[Back to Controllers]

Research by [Linos]

Alternative mapping schemes by [lunalawl], [Doom05], and [Ashun]
