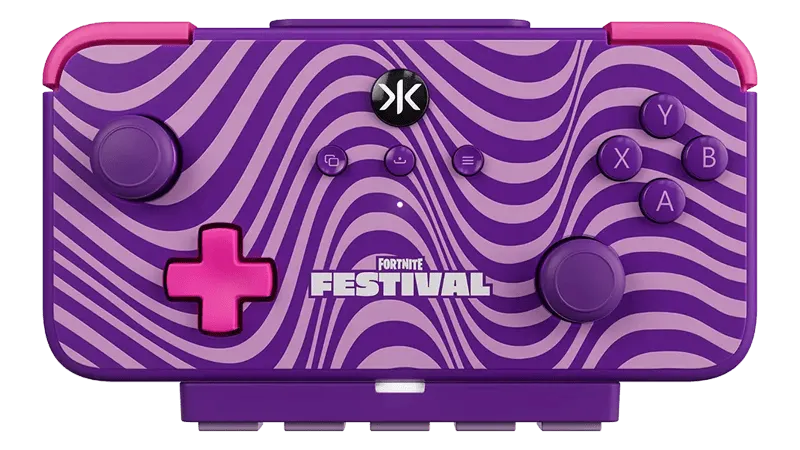

CRKD NEO S Wave

• CRKD NEO S Wave controllers can be connected via USB or wirelessly via Bluetooth. For Bluetooth, you need a Bluetooth receiver to connect to your computer.
• To rebind the controller, use the CRKD app on your phone (iOS/Android).
• To play Guitar/Bass/Keys/Drums parts on a Controller (Padtar), you will need Rock Band 3 Deluxe.
  • You can also rebind your controller within Deluxe.
    Menu > Options > Deluxe Settings > Advanced > Controller > Pad Button Remap

How do I set my gamepad up?

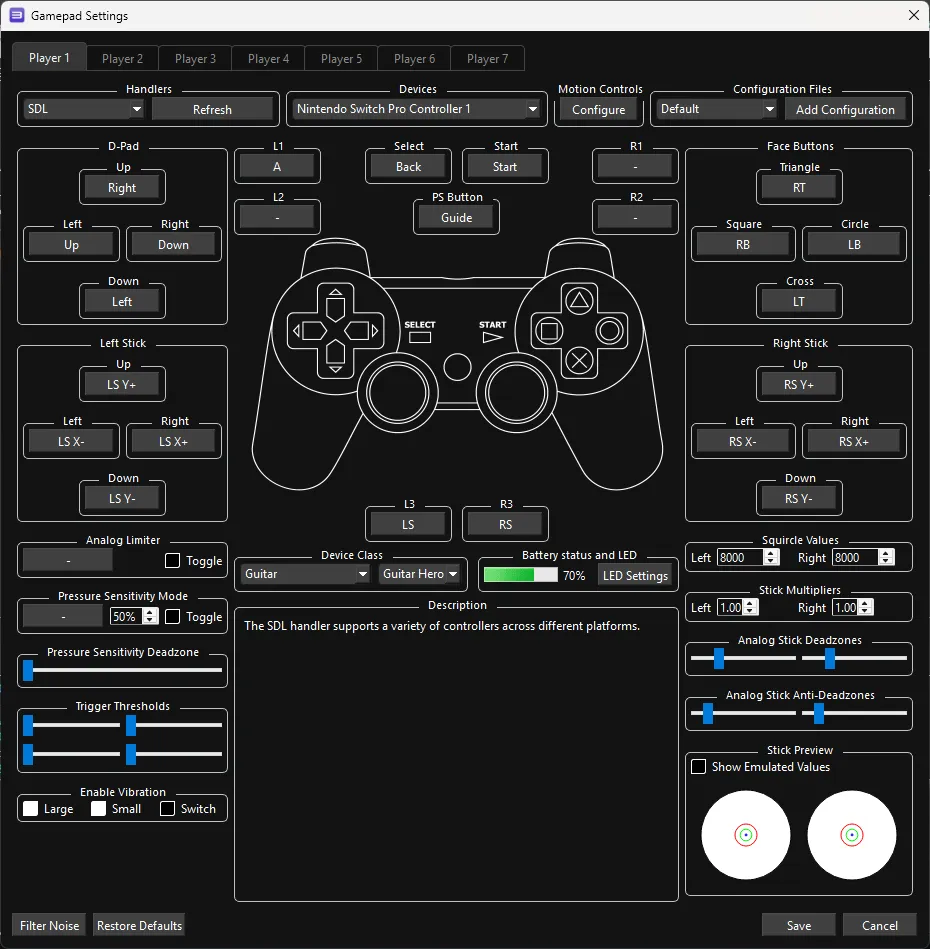

Click on the Pads icon at the top of RPCS3.

Follow the instructions and/or match the assignments below.

Bindings

These bindings are here in case you need ideas on how to configure your device. You can leave the binding on default and just remap within Deluxe as mentioned above.

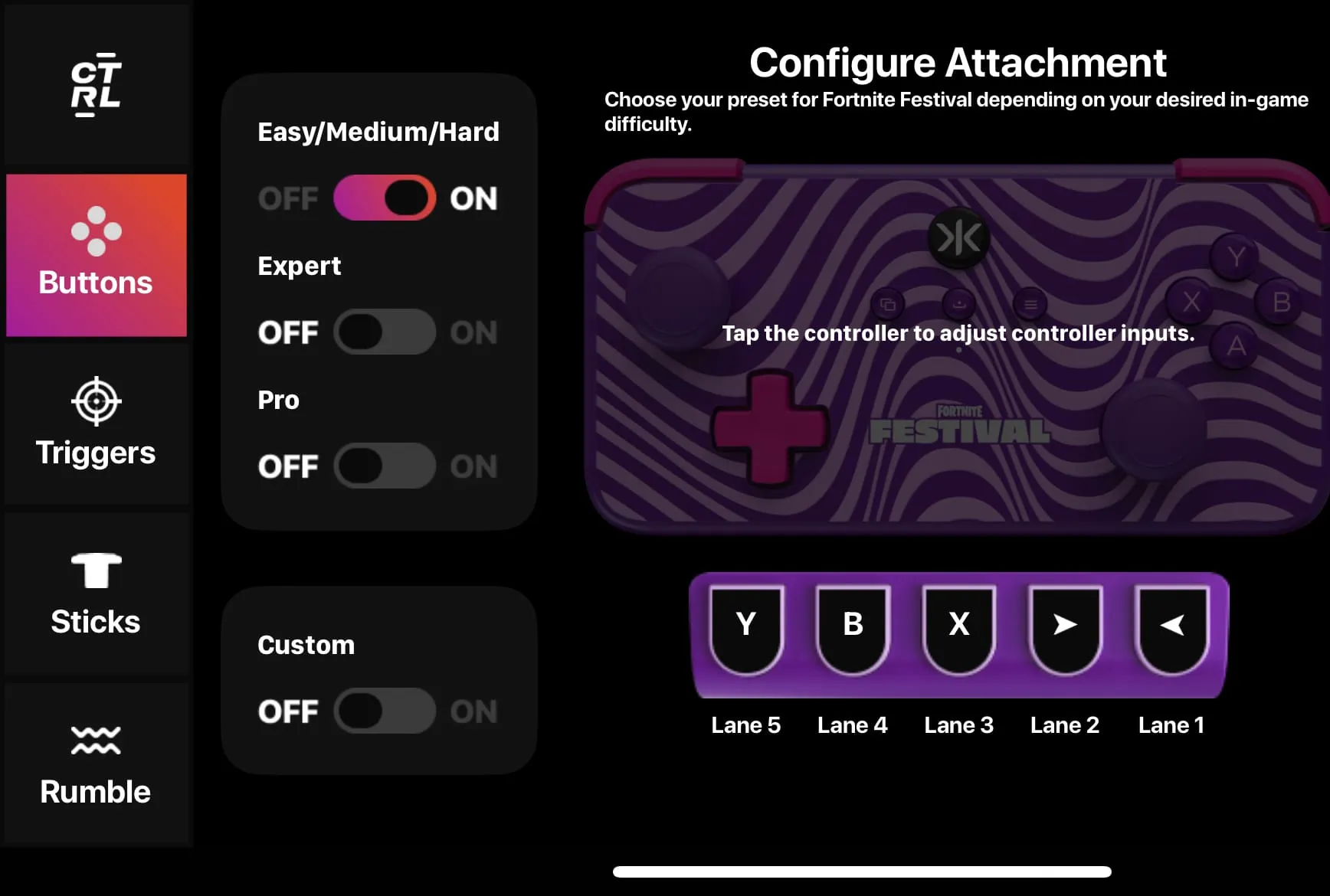

Default Guitars/Bass/Keys

• This is the out-of-the-box experience.

CRKD App Setup

Lane	Button
Lane 1	Left
Lane 2	Right
Lane 3	X
Lane 4	B
Lane 5	Y

Pad Information

Handlers	Devices
SDL	Nintendo Switch Pro Controller

Device Class	Device Subtype
Standard (Pad)	PS3 Controller

Bindings

Lane	Rock Band
	Overdrive

Retro Guitars/Bass/Keys

• This configuration sets the fret buttons to mimic the padtar buttons from Guitar Hero 1, 2, 80s, 3, and Aerosmith.

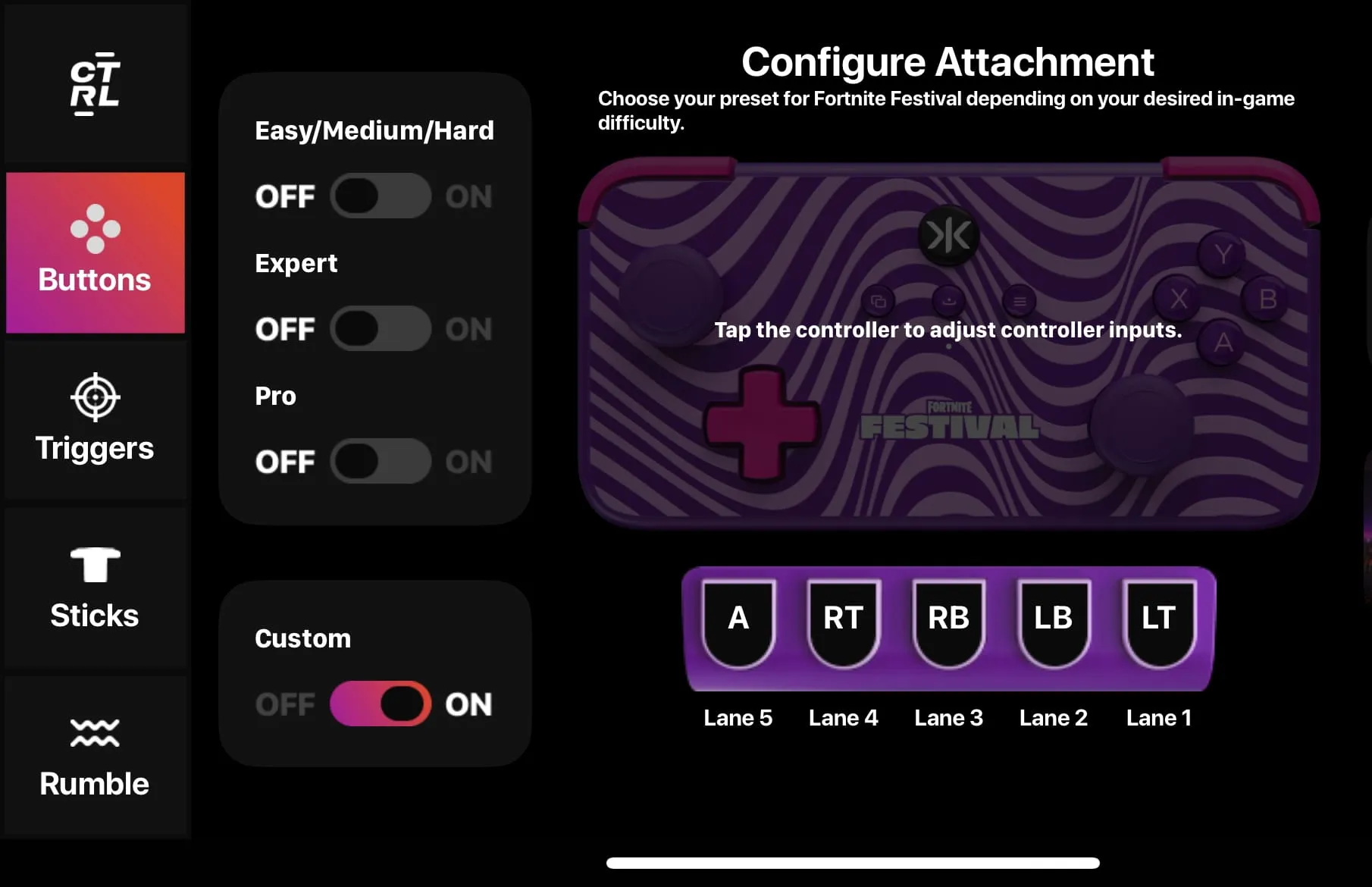

CRKD App Setup

Lane	Button
Lane 1	LT
Lane 2	LB
Lane 3	RB
Lane 4	RT
Lane 5	A

Pad Information

Handlers	Devices
SDL	Nintendo Switch Pro Controller

Device Class	Device Subtype
Standard (Pad)	PS3 Controller

Bindings

Lane	Rock Band
	Overdrive

Pro Guitar/Bass

• This configuration requires you to strum after holding down frets.

CRKD App Setup

Lane	Button
Lane 1	LT
Lane 2	LB
Lane 3	RB
Lane 4	RT
Lane 5	A

Pad Information

Handlers	Devices
SDL	Nintendo Switch Pro Controller

Device Class	Device Subtype
Guitar	Guitar Hero

Bindings

Lane	Rock Band
	Overdrive

[Back to Controllers]

Mapped by [qtipman64]
