Xbox One Rock Band 4/Fortnite Festival Guitars

Note

RPCN Menus (for sending or accepting online invites) may cause a softlock. You will need an alternative input method to navigate these menus, such as a [typing keyboard or a gamepad.]

• Requires installing and running [RB4InstrumentMapper] along with its dependencies.
• Linux users can install [xone kernel drivers] to use Xbox One peripherals.

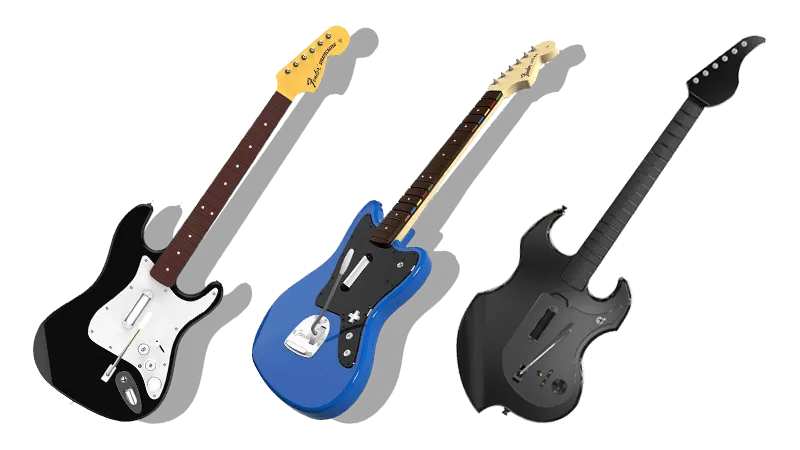

• This profile works for Xbox One Fender Stratocaster, Fender Jaguar, and PDP Riffmaster guitars.
  • Fender Stratocaster and Fender Jaguar guitars require a Microsoft Xbox Wireless Adapter.

  • PDP Riffmaster guitars require their respective dongle.

• If you have a Jaguar guitar, you may need to install a [firmware update] to connect it to the receiver. [Click here for more information].
• RPCN Menus (for sending or accepting online invites) may cause a softlock. You may need an alternative input method to navigate these menus, such as [a typing keyboard or a gamepad].

How do I map my guitar?

Click on the Pads icon at the top of RPCS3.

It’s suggested to create a new configuration by clicking Add Configuration at the top right of the Pads window.
This is so you can change configuration profiles in case you want to play other games.

Follow the instructions and/or match the assignments below.

Pad Information

Handlers	Devices
XInput	XInput Pad

Device Class	Device Subtype
Guitar	Rock Band

Additional Setup

Please refer to RB4InstrumentMapper’s documentation.
[Click here to go there].

Having issues with your Xbox One instrument?

1. Go to Start > Settings > Apps > Installed apps
2. Look for Microsoft GameInput and uninstall the latest version.
   Please note that it may reinstall itself after a reboot. We are looking for better solutions.

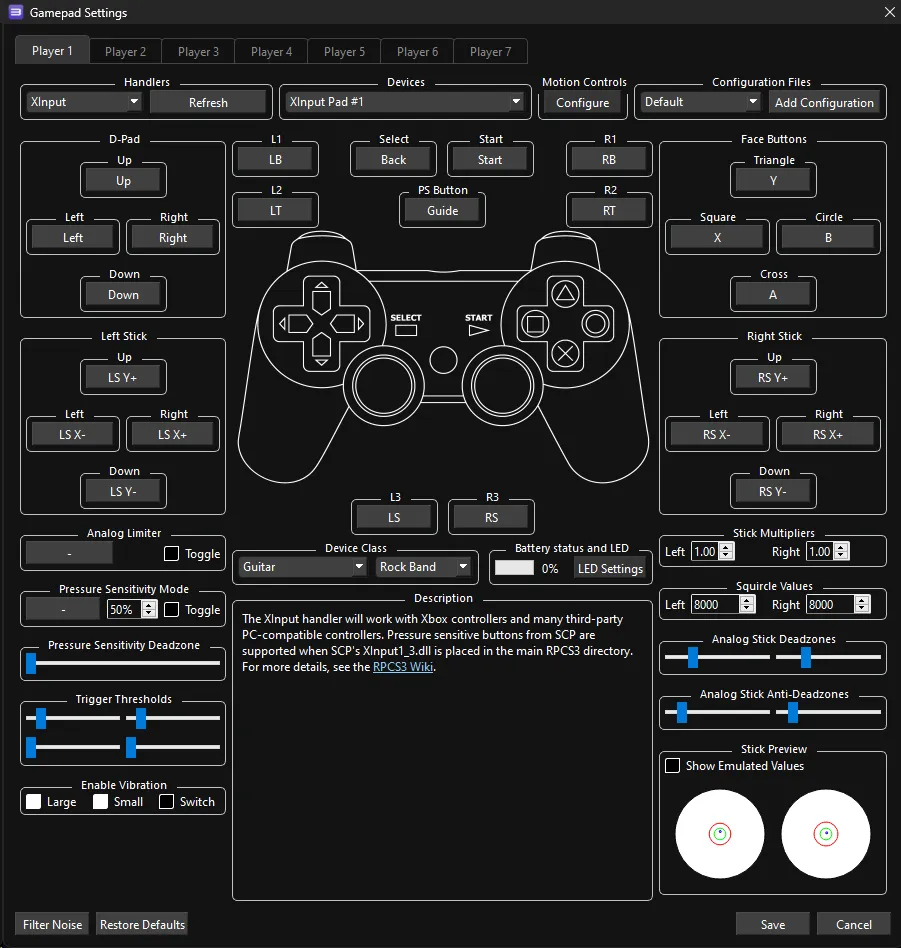

Mapping:

Controller Emulation Mode: ViGEmBus (RPCS3 compatibility)

This is the recommended mode and should not require any mapping. You simply need to assign the Handler, Device, and Device Class/Type.

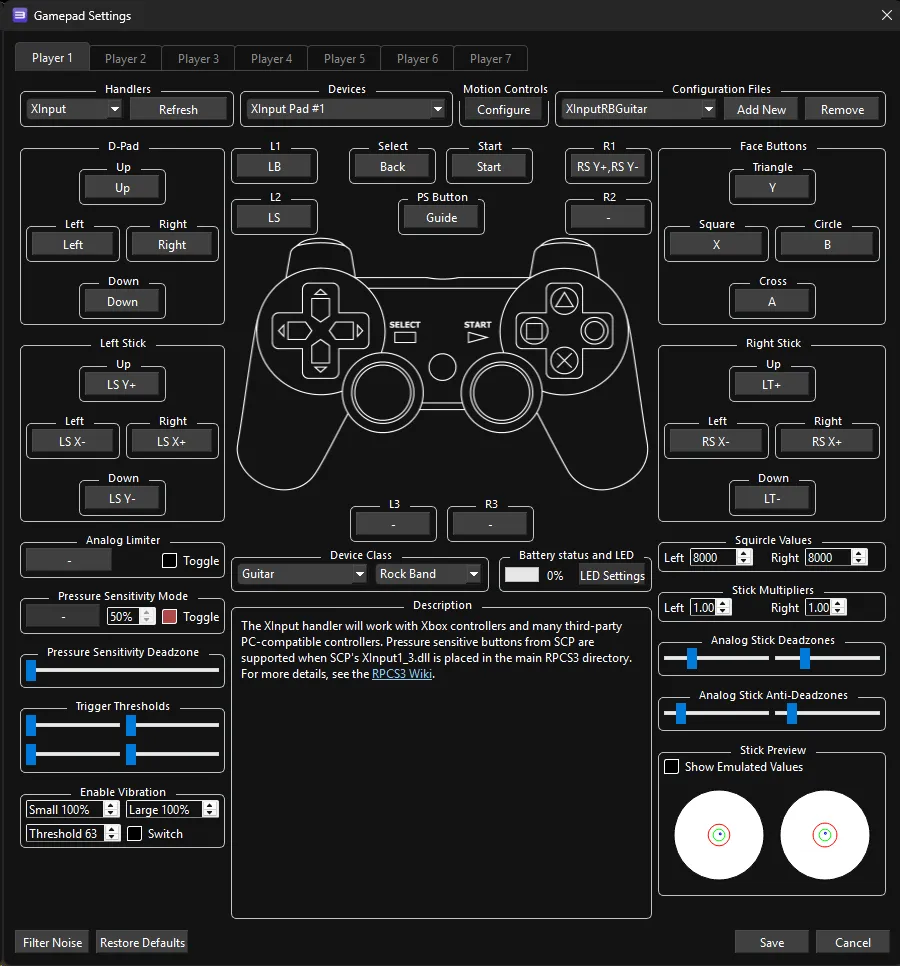

Advanced Mapping

[Download Profile]

This is not suggested as it requires lots of manual mapping. You should instead use ViGEmBus (RPCS3 compatibility).

Caution

This is not recommended if you’re using multiple controllers at once.

After downloading the profile,

1. Extract the .7z file.
2. Drag the input_configs folder into the configs folder where you have RPCS3 in.

3. After that, you can select the profile in the “Pads” menu.

Most of the time, these controller profiles should work out of the box. If they don’t, try changing the controller listed in Devices, next to the Refresh button until it receives an input. You can edit this while the game is running.

Bindings

RPCS3	Controller
Cross
Circle
Square
Triangle
L1
D-Pad: Up
D-Pad: Down
D-Pad: Left
D-Pad: Right
Right Stick: Left/Right
Right Stick: Up or Down
L2
R1
Start
Select
PS Button

[Back to Controllers]

Mapped by [gonakil1ya]
