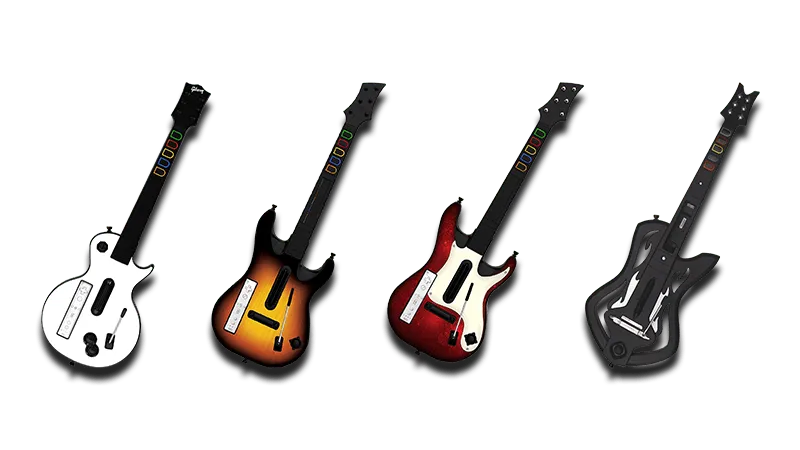

Nintendo Wii Guitar Hero Guitars (WiitarThing)

Note

RPCN Menus (for sending or accepting online invites) may cause a softlock. You will need an alternative input method to navigate these menus, such as a [typing keyboard or a gamepad.]

Note

Tilt doesn’t work on this controller.

• Requires downloading and running [WiitarThing].
  • Clipper requires installing [ViGEmBus]
• This configuration requires connecting wirelessly via Bluetooth. You need a Bluetooth receiver to connect to your computer.
• Looking to mod your guitar?
  • You can get the [RetroCultMods Revival Kit].
    • [Alternative Etsy link]
  • You can get the [PhunkyCustoms Solderless RGB GH Controller Mod Kit].
• RPCN Menus (for sending or accepting online invites) may cause a softlock. You may need an alternative input method to navigate these menus, such as [a typing keyboard or a gamepad].

Initial Setup

1. After installing [WiitarThing] along with [ViGEmBus], open it up.

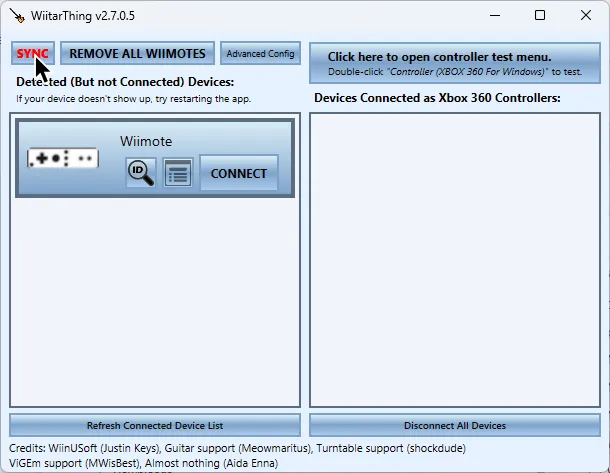

2. Press the [SYNC] button at the top left.

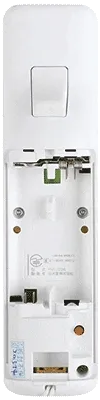

3. Press either the red SYNC button on the back of your Wii Remote^a or press both 1+2 at the same time^b. You may have to try this a few times.

• A:
• B:

4. Once it’s synced, click [CONNECT].

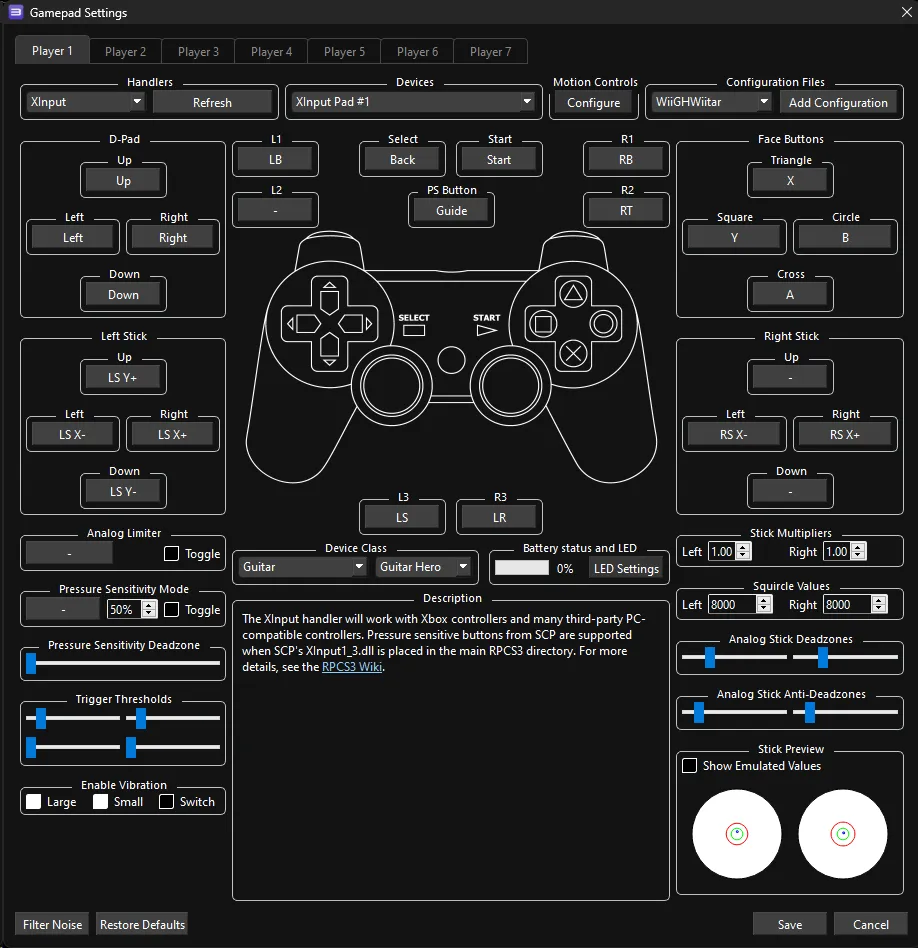

5. Map your guitar.

How do I map my guitar?

Click on the Pads icon at the top of RPCS3.

It’s suggested to create a new configuration by clicking Add Configuration at the top right of the Pads window.
This is so you can change configuration profiles in case you want to play other games.

Follow the instructions and/or match the assignments below.

Pad Information

Handlers	Devices
XInput	XInput Pad

Device Class	Device Subtype
Guitar	Guitar Hero

Mapping

By default, XInput has most things bound correctly. You only need to adjust the following:

UNMAP THE FOLLOWING or guitar solos will auto-strum!

• Use Right Click to unmap a button.

RPCS3	XInput	Guitar
L2		Solo Modifier

Change the following or blue and yellow frets will be inverted!

RPCS3	XInput	Guitar
Square
Triangle

Guitar Hero controllers tend to misbehave and refuse to map sometimes. If you try mapping a button and always get U+ or something similar, click Filter Noise at the bottom left of the controller configuration window then try mapping.

Profile

[Download Profile]

How do I use profiles?

Caution

This is not recommended if you’re using multiple controllers at once.

After downloading the profile,

1. Extract the .7z file.
2. Drag the input_configs folder into the configs folder where you have RPCS3 in.

3. After that, you can select the profile in the Pads menu.

Most of the time, these controller profiles should work out of the box. If they don’t, try changing the controller listed in Devices, next to the Refresh button until it receives an input. You can edit this while the game is running.

Advanced Mapping

RPCS3	Guitar
Cross
Circle
Square
Triangle
L1
D-Pad: Up
D-Pad: Down
D-Pad: Left
D-Pad: Right
Right Stick: Left/Right
Start
Select
PS Button

[Back to Controllers]

Mapped by [gonakil1ya]
