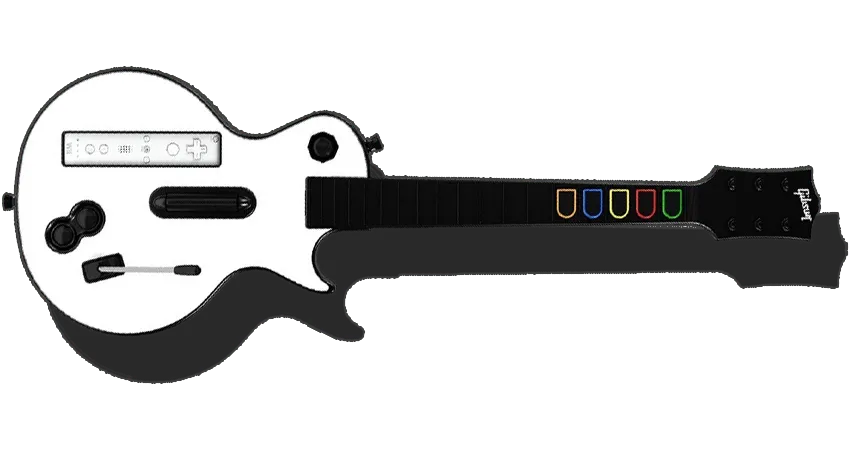

Nintendo Wii Guitar Hero Les Paul Guitars (Raphnet)

NOTES

Note

Please don’t buy new Raphnets in 2025. They are no longer the go-to solution.

Note

Tilt doesn’t work on this controller.

• This was tested with a Raphnet “Classic controller to USB adapter”.
  • If the controller doesn’t work at all, try installing [Raphnet’s management tool].
• It is strongly recommended to get a V3 adapter instead.
  • [Buy one from RetroCultMods (RCM Shop).]
  • [Buy one from Etsy.]
• Looking to mod your guitar?
  • You can get the [RetroCultMods Revival Kit].
    • [Alternative Etsy link]
  • You can get the [PhunkyCustoms Solderless RGB GH Controller Mod Kit].
• RPCN Menus (for sending or accepting online invites) may cause a softlock. You may need an alternative input method to navigate these menus, such as [a typing keyboard or a gamepad].

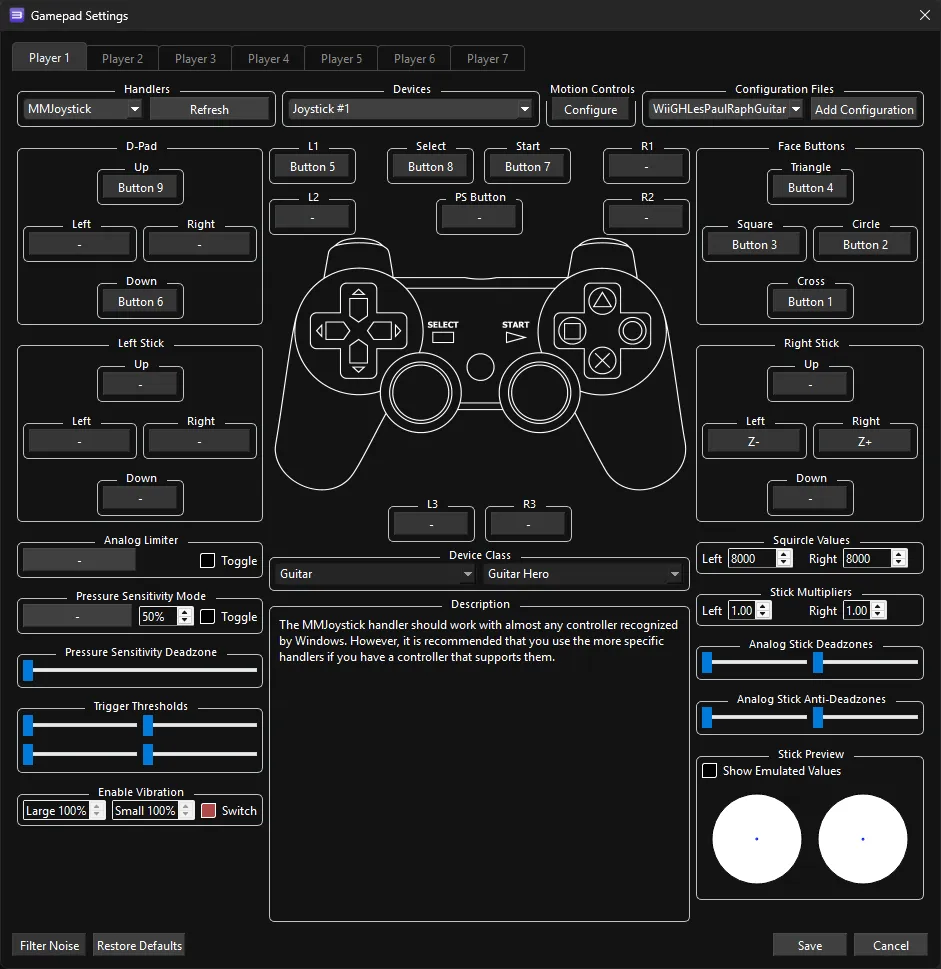

How do I map my guitar?

Click on the Pads icon at the top of RPCS3.

It’s suggested to create a new configuration by clicking Add Configuration at the top right of the Pads window.
This is so you can change configuration profiles in case you want to play other games.

Follow the instructions and/or match the assignments below.

Pad Information

Handlers	Devices
MMJoystick	Joystick

Device Class	Device Subtype
Guitar	Guitar Hero

Mappings

UNMAP THE FOLLOWING or guitar solos will auto-strum!

• Use Right Click to unmap a button.

RPCS3	Guitar
L2	Solo Modifier

Map the following:

• Guitar Hero controllers tend to misbehave and refuse to map sometimes. If you try mapping a button and always get U+ or something similar, click Filter Noise at the bottom left of the controller configuration window then try mapping.

RPCS3	Controller
Cross
Circle
Square
Triangle
L1
D-Pad: Up
D-Pad: Down
Right Stick: Left/Right
Start
Select
PS Button

Profile

[Download Profile]

How do I use profiles?

Caution

This is not recommended if you’re using multiple controllers at once.

After downloading the profile,

1. Extract the .7z file.
2. Drag the input_configs folder into the configs folder where you have RPCS3 in.

3. After that, you can select the profile in the “Pads” menu.

Most of the time, these controller profiles should work out of the box. If they don’t, try changing the controller listed in Devices, next to the Refresh button until it receives an input. You can edit this while the game is running.

[Back to Controllers]

Mapped by [GamerPerson22]
