RetroCultMods Kit Guitars

This page is specifically for guitars using modded kits made by [RetroCultMods]! Check your receipt from either the [RetroCultMods’ own website] or [Etsy shop] to verify that you indeed have a guitar using a mod kit from RetroCultMods.

Setup

Before starting, be sure to [download the latest version of RCM Programming Tool].

Start up up RCM Programming Tool.

In the start screen, set your device to program to. In this example, it was set to Solderless Kit - PS2/Emulator.
After that, click on Configure and wait for the progress bar to finish.

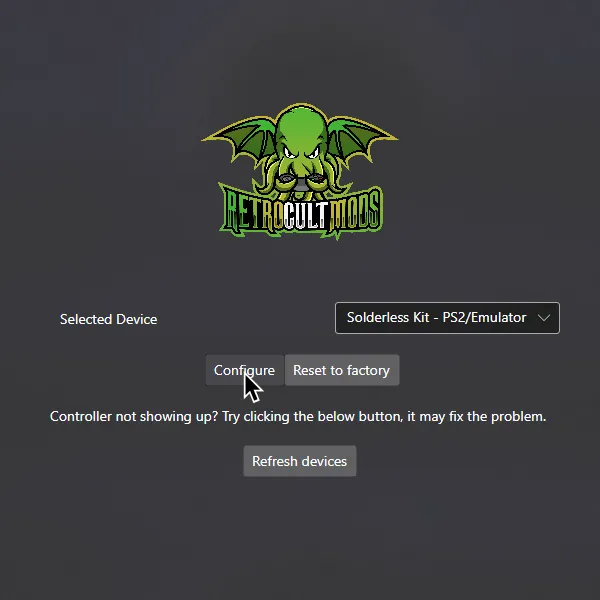

RCM Programming Tool's first screen with 'Device to program' set to 'Solderless Kit - PS2/Emulator'.

In Controller Settings, change the following:

Enable Use USB Passthrough with RPCS3

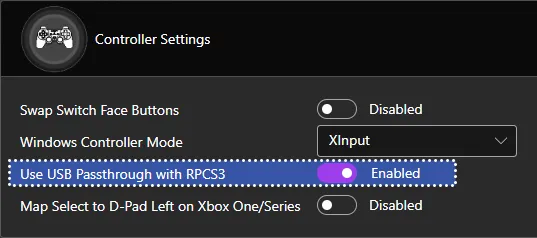

RCM Programming Tool's Controller Settings. The settings reflect exactly what is above.

It’s also suggested you calibrate your Whammy to have the best experience. Scroll down to the Whammy section and calibrate it.

MAKE SURE YOU CLICK ON Save Settings before closing the program or you will lose progress!

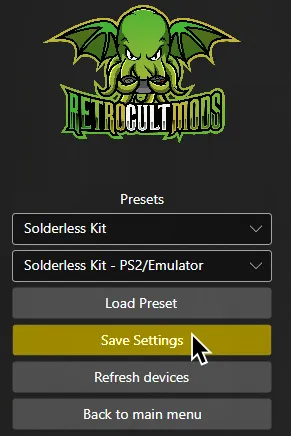

RCM Programming Tool. The cursor is hovering over 'Save Settings'.

When you’re done, close RCM Programming Tool.

You can now launch Rock Band 3!
